Mini PC Fanless Industrial Computer with Aluminum Case, HD-MI and VGA Ports

FOB Reference Price:Get Latest Price
$169.00 - $299.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SM03
Lead Time:
Quantity(Sets) 1 - 10 11 - 50 >50
Est. Time(days) 10 20 Negotiable
Samples - $299.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Embedded Computer
Brand Name:
SHINHO
Place of Origin:
Guangdong, China
CPU:
Intel Celeron J1900 fanless, quad core, 2.0GHz
RAM:
4G DDR3
Hard disk:
64G SSD
Front I/O Ports:
1x USB 3.0, 3x USB 2.0, 2x RS232 COM, LAN etc.
optional I/O ports:
1x USB 3.0, 5x USB 2.0, 1x RS232 COM
Material:
Aluminum Alloy Enclosure
Product Dimension:
13.4*12.6*3.8cm
Key words:
Fanless Industrial Computer
Supply Ability
Supply Ability:
5000 Set/Sets per Month Fanless Industrial Computer
Packaging & Delivery
Packaging Details
1set/carton/1.25kg, 19*15*15cm
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 10 11 - 50 >50
Est. Time(days) 10 20 To be negotiated

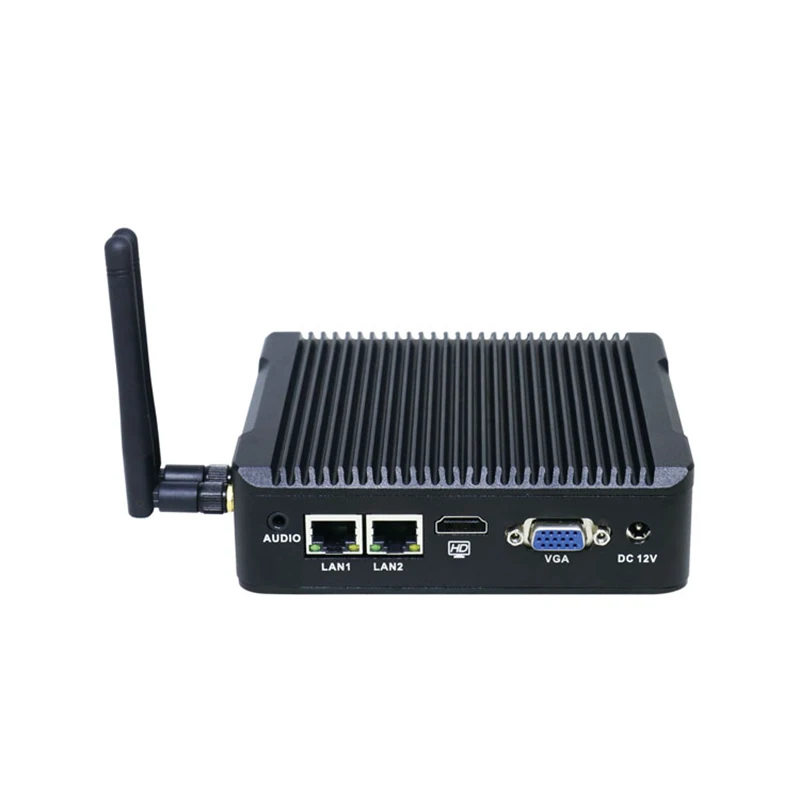

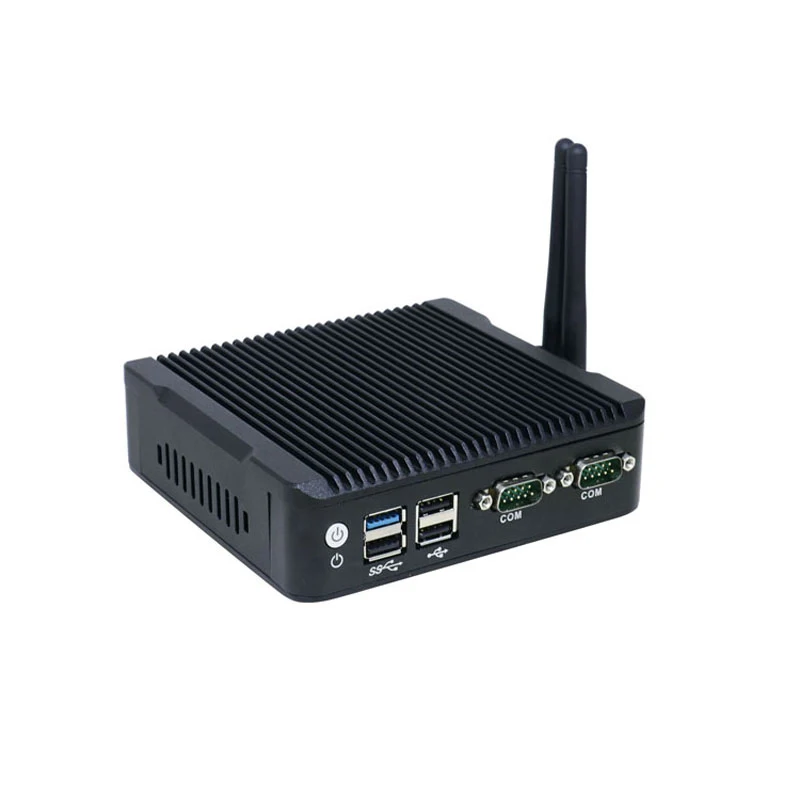

Mini PC Fanless Industrial Computer with Aluminum Case,  HD-MI and VGA Ports

Product Description

Features:
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Celeron J1900 quad core processor, 2.0GHz
4. 1x VGA + 1x H DMI + 2x LAN + 2x COM + 4x USB
5. AMI 64MB Flash ROM, support RPL/PXE diskless boot, wake on LAN, electricity boot, WDT
6. Support wifi and bluetooth optional (Not included in standard quotation)
7. 2x RTL8111E 1000M LAN card, support wake on LAN
8. Compatible Win7/8/10, Linux.





Model: SM03

PC

CPU

Intel Celeron J1900, quad core, 2.0GHz

Memory

1x SODDR3L 1.35V (can up to 8GB)

Storage

Support 1x MSATA, 1x SATA

Display

1x VGA, 1x H DMI

Display Chip

Integrated Intel HD Graphics card

Network

2x Realtek 8111E LAN, support wake on LAN

Audio

Integrated Realtek ALC662 6 sound channel

I/O Interface

1x USB 3.0, 3x USB 2.0, 2x RS232 COM, 1x H DMI, 1x VGA, 2x RJ45 LAN, 1x Audio, 1x DC 12V port, 1x Power switch

I/O Interface
(optional)

1x USB 3.0, 5x USB 2.0, 1x RS232 COM, 1x H DMI, 1x VGA, 2x RJ45 LAN, 1x Audio, 1x DC 12V port, 1x Power switch

Expansion

2x Mini-PCIE, support MSATA and WiFi (WiFi is not included in standard quotation)

BIOS

AMI 64M DPI Flash ROM

WDT

Support hardware reset (256level, 0~255 sec)

Operation System

Support Win7/8/10,  Linux, Ubuntu, Debian etc.

Power Supply

External Power Supply

AC 100 - 240V

Working voltage

DC 12V

Power consumption

≤40W

Enclosure

Material

Aluminum Alloy

Color

Black

Operating Environment

Temperature Range

operating: -10 to 60°C, storage: -10 to 60°C

Relative humidity

0%~95% , non-condensing

Packing Details

Net weight

0.6kg

Gross weight

1.25kg

Product Dimension

13.4*12.6*3.8cm

Packing size

19*15*15cm

Accessories

Power adapter, VESA brackets, screws, user manual, warranty card

Other



Mounting (options)

VESA brackets (free)

open frame mounting (optional)

Warranty

3 years warranty



 Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.



Drawing



Application



Certifications





Company Information

Factory Show

Quality Inspection



R&D Team



After-Sales Service

1. We offer a life-long maintenance that is free in the first year.


2. In the first year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help
our technicians to analyze the cause of problem, then we will send you the necessary spare parts
and teach you how to repair it, free of charge.


3.If we can't find out the cause of failure, you can return the defective product to us,
we will repair it and resend it to you in one week. If the defective product can't be
repaired, we will send you a new one for replacement, free of charge.


4. Please note that man-made damage is out the scope of free warranty.


5. After the first year of free warranty, we will charge you the factory cost for the
replaced accessories, free for maintenance.


6. If your order comes to a certain quantity, we will provide you some spare units,
for replacing the defective product. The number of spare units depends on the
quantity of your order and the model of the products.


7. Pls feel free to contact our customer service team via Service hotlike. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
